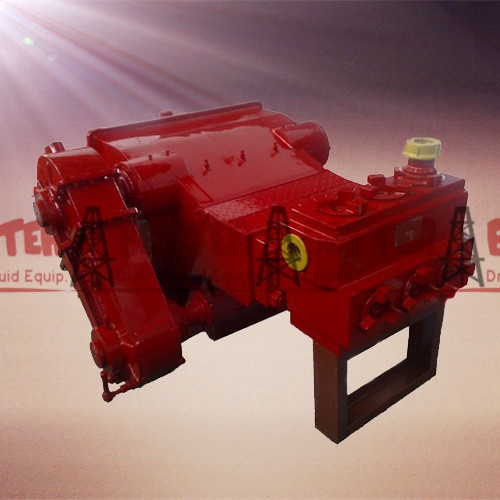

HT400 Type Plunger Pump HT400 Type Plunger Pump HT400 Type Plunger Pump
Product name : HT400 Type Plunger Pump
Model No. : BT-PP HT400 series
Quality Standard : #API & ISO
Origin : CN
Package : Plywood case / Steel Pallet
HS code : 8413910000
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
BETTER BT-PP HT400 series Plunger Pump for Cementing and Fracturing

Equivalent to Halliburton HT400 Plunger Pump


BETTER P400 pump is used in all phases of oilfield operation to pump water, cement, fracturing fluids, and other stimulation fluids. The three main parts of pump are the power end, the spacer, and the fluid end.

Power End

The power-end assembly reduces speed, multiplies torque, and changes rotary action into reciprocating action. It takes energy delivered by the engine and transmission and changes it into energy that can be used by the fluid end. Power ends are customized to meet job requirements and conserve space on the trailer or truck unit. Cases are available in right- and left-hand versions. We use Holroyd gear sets (8.6:1) for 400 pump

Spacer

On most pump configurations, a steel spacer assembly is used between the fluid end and the power end. The spacer helps prevent fluids from escaping from the fluid end into the power-end cavity (sump).

All new pumps require spacers. Fracturing pumps require L-2 spacers and cement pumps require L-4 spacers.

Fluid End

The fluid end uses energy that has been modified by the power end to move cement, fracturing mediums, and other liquids and materials.

The 400 pump fluid end, which is available in two sizes, can be customized for many applications. The fluid end accepts a variety of discharge flanges and plunger lubricators. Different lengths of plungers and tie bolts are used. A variety of valve and seat combinations are available, and different springs and inserts can be installed on these valves.

Main Technical Parameters:

1.Power End

Rated Max. Brake Horsepower: 600BHP (447Kw)

Max. Input Torque: 9782N·m

Gear Ratio: 8.6: 1

2.Fluid End

Stroke Length: 8"(203.2mm)

Max. Pressure: 1436kg/cm²

Max. Flow Rate: 2111L/min

Net Weight (Approx.): 6500Lbs (2910kg)


BETTER provides you with good source and on-site inspection
