Product name : Air O Grip Union
Model No. : BT-U AOG series
Quality Standard : #API & ISO
Origin : CN
Package : Plywood case / Steel Pallet
HS code : 8431431000
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:


BT-U AOG series Air O Grip Union
Equivalent to Kemper™ style Seal- O-Grip Union

BETTER Air Grip Unions are widely used in the pipelines with low-pressure, large pipe size, big pipe misalignment, frequent installation and uninstall. Especially, in connecting mud tanks, mud suction and return lines in solid control system.

Features

  • Fast, easy make-up without close alignment
  • Carbon steel body welds in place on mud tanks or manifold pipe, with NBR air tube for sealing even if the connecting pipe is not perfectly aligned
  • Allows pipe expansion or misalignment up to 14°
  • No nuts, bolts, or wrenches required
  • Available in 4 - 16 inch sizes
  • KEMPER Seal-O-Grip Union, BULLDOG Air Grip Union Assembly style( Air Grip Union + Inflatable Tube)
  • Grey or Red Nut & Sub, customized color & logo available

Technical Parameter

  • Working medium: Oil based mud, water based mud, or other drilling fluid
  • Medium temperature:-45℃~55℃
  • Reconversion time when deflated: 1-3 seconds
  • Line pressure up to 150psi and tube pressure is Max. 50psi above than line pressure
  • Structure: Casting Steel Shell and Air Inflatable Tube (NBR)

Specification



Line Pipe
Size
Line Pipe
O.D.
Max. Misalignment
Tolerance

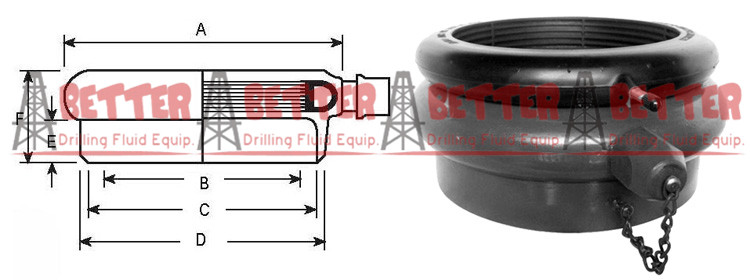

Seal-O-Grip Union Dimensions in mm
A
B
C
D
E
F
4-inch
4 ½”(114.3mm)
213
114
148
168
57
110
6-inch
6 5/8”(168.3mm)
14°
267
168
199
219
57
110
8-inch
8 5/8”(219.1mm)
14°
318
219
253
273
57
110
10-inch
10 3/4” (273.1mm)
14°
372
273
305
325
57
120
12-inch
12 3/4”(323.9mm)
14°
424
325
336
356
57
120
14-inch
14” (355.6mm)
14°
476
356
386
406
57
120
16-inch
16”(406.4mm)
14°
507
406
437
457
57
120
