Tong Dies

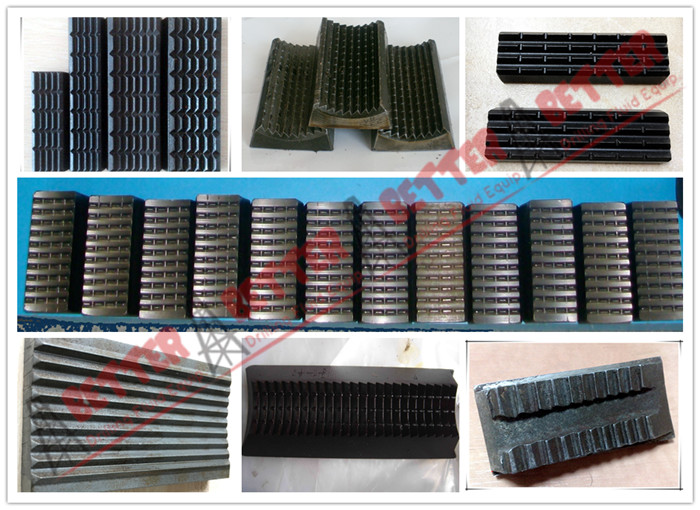

BETTER Tong Dies & Inserts
BETTER could supply a wide range of tong dies and inserts, all our die and inserts are forged and machined, to provide the accuracy required for today's critical applications. The high grade material selected and professional heat treating process provides a suitable hardness, to ameliorate the performance of wear-resisting and corrosion-resisting to a maximum service life. Phosphating or blasting will be done for the surface treatment. Various tooth patterns are available for specific applications. Custom is available.
Interchangeability Warranty
100% interchangeable with OEM design, including BJ, Varco, Web Wilson, B+V, Woolley, Eckel, Farr, Weatherford, BAASH-ROSS Cavins, TD, Rushi, but more cost-effective!

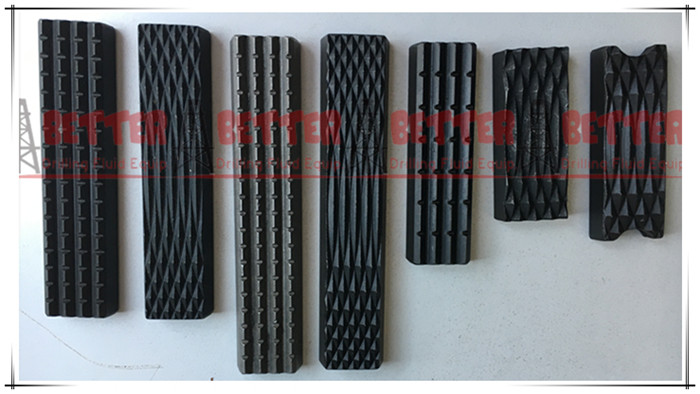

MANUAL TONG DIES Pyramid, Coarse, Plain, Blue Diamond Tooth
We can supply those tong dies for BJ Type B, DB, B Extend/HT50, HT55, HT65 Manual Tong, Web Wilson AAX, H, Woolley Type Super A, B, B+V BV-55, BV-57, BV-65, BV-80, BJ Type SDD, C, F & LF Manual Tong, BJ Power Casing Tong( 4 ½”-13 3/8”), Woolley Type Super C, Eckel model 850, Web Wilson, B+V BV-25, BV-35, BV-100, Short Die for BJ Type B Manual Tong, BJ Drill Pipe Power Tong, Eckel Power Casing Tong, Farr Power Tongs, BJ Powermatic tong, Farr Power Tong, Weatherford 5 ½” & 7 /8”
Dimension: 1/2” x 1.1/4” x 5.7/8”, 1/2” x 1.1/4” x 5”, 1/2” x 1.1/4” x 3.7/8”, 3/8” x 1” x 3.7/8”
Part No.: 16402-2, 16402-6, 6416039, 4716, 627-185-1578, 16401-2, 16401-6, 16401-1, 16401, 6416020, 4631
103426, 4616, 627-185-1500, 24768-2, 101-251, 337-02-098, 6416012, 24768-8, 24768, 24770-2, 6473, 12-1003, 6400019
POWER TONG DIES Pyramid, Coarse, Plain, Blue Diamond Tooth
We can supply power tong dies for BJ Drill Pipe Power Tong, RUSHI Drill Pipe Power Tong ZQ 203-100/125, TD Tubing Power Tong XQ89/3YB, XQ89/3YC, XY114/6YB, XQ140/12Y in size of 1/2” x 1.1/4” x 3.7/8”, 7/16” x 1 ¼” x 3 1/16”, 1 3/16” x 1 ¼” x 3 1/2”, etc.

INSERTS FOR ROTARY SLIPS VARCO MODEL SDS/SDML/SDXL & BAASH-ROSS MODEL DU
Pipe size
Original P/N
Weight
Quantity Required
SDS
SDML
SDXL

3-1/2”
2-3/8”
2160
0.40
24
30
/
2-7/8”
2161
0.31
3-1/2”
2162
0.20
4-1/2”
3-1/2”
2163
0.40
36
45
54
4”
2164
0.31
4-1/2”
2165
0.20
5”
4”
2168
0.40
/
45
54
4-1/2”
2166
0.31
5”
2167
0.20
5-1/2”
4-1/2”
2168
0.40
/
45
54
5”
2169
0.31
5-1/2”
2170
0.20

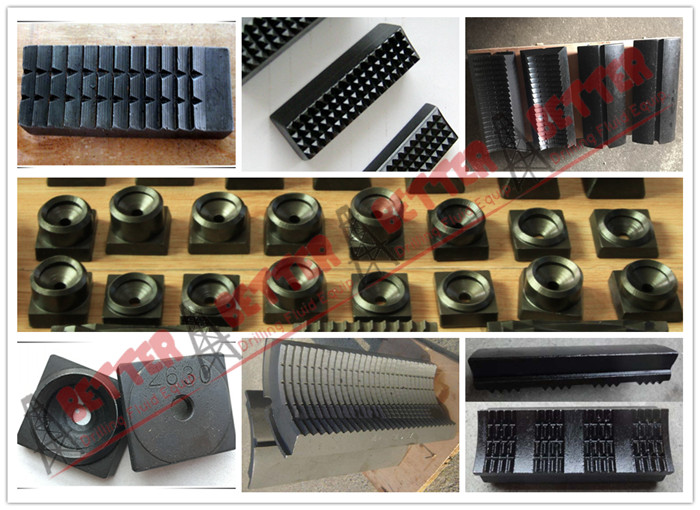

Circular Buttons FOR VARCO DRILL COLLAR SLIPS - DCS-S / DCS-R / DCS-L & CASING SLIPS CMS-XL

Circular Buttons FOR VARCO DRILL COLLAR SLIPS - DCS-S / DCS-R / DCS-L

Slip type
Bowl No.
Drill collar range
Original P/N
Weight(Kg/ea)
Qty. Req.
DCS-S
3
3” to 4”
2628
0.113
49
3
4” to 4-7/8”
2620
0.057
DCS-R
3
4-1/2” to 6”
2628
0.113
63
3
5-1/2” to 7”
2620
0.057
DCS-L
3
6-3/4” to 8-1/4”
2630
0.057
88
3
8” to 9-1/2”
2630
0.057
96
2
8-1/2” to 10”
2627
0.113
104
2
9-1/4” to 11-1/4”
2630
0.057
112
1
11” to 12-3/4”
2625
0.057
136
1
12” to 14”
2630
0.057
136
Circular Buttons FOR VARCO CASING SLIPS - CMS-XL
Slip type
Bowl No.
Casing range
Original P/N
Weight(Kg/ea)
Qty. Req.
CMS-XL
3
6-5/8”
2628
0.113
144
7”
2619
0.113
7-5/8”
2630
0.057
8-5/8”
2630
0.057
156
2
9-5/8”
2630
0.057
168
10-3/4”
2630
0.057
180
1
11-3/4”
2627
0.113
204
13-3/8”
2630
0.057
216
CASING BUSHING
16”
2631
0.057
252
18-5/8”
2626
0.085
300
20”
2631
0.057
312
24”
2631
0.057
360
26”
2631
0.057
396
30”
2631
0.057
444
INSERTS FOR BJ SLIP TYPE ELEVATORS “LYT” “MYT” “YT” “HYT” “YC”
Slip Type Elevator Model
Description
Original P/N
#/Set
LYT(1.05”- 2 1/16”/ 20 TON)
2 1/16” x 2 1/16”
28772
8
MYT( 1.315”- 2 7/8”/ 40 TON)
2 7/8” X 2 7/8”
24773
8
2 7/8” X 2 3/8”
29255
8
2 7/8” X 2 1/16”
29256
8
2 7/8” X 2”
29357
8
2 7/8” X 1 1/2”(1.9”)
29257
8
2 7/8” X 1 1/4”(1.66”)
29258
8
2 7/8” X 1”(1.315”)
29259
8
YT( 1.315”- 3 1/2”/ 75 TON)
2 7/8” X 2 7/8”
24773
12
2 7/8” X 2 3/8”
29255
12
2 7/8” X 2 1/16”
29256
12
2 7/8” X 2”
29357
12
2 7/8” X 1 1/2”(1.9”)
29257
12
2 7/8” X 1 1/4”(1.66”)
29258
12
2 7/8” X 1”(1.315”)
29259
12
3 1/2” X 3 1/2”
24774
24
3 1/2” X 2 7/8”
30358
24
HYT(2 3/8”- 3 1/2”/150 TON)
2 7/8” X 2 7/8”
24773
16
2 7/8” X 2 3/8”
29255
16
2 7/8” X 2 1/16”
29256
16
3 1/2” X 3 1/2”
24774
32
3 1/2” X 2 7/8”
30358
32

YC(3 1/2”-7”/75 TON)

3 1/2” X 3 1/2”
16441/350103
16
4” X 4”
16442
16
4 1/2” X 4 1/2”
16408/350105
16
4 1/2” X 4”
24781/350504
16
4 1/2” X 3 1/2”
24779/350903
16
5 1/2” X 5 1/2”
BJ16407/350107
16
5 1/2” X 5”
24783/350506
16
7” x7”
BJ16407/350110
24
7” x 6 5/8”
24748/350409
24
FULL CIRCLE SLIP INSERTS FOR C CHD E CAVINS TUBING SPIDER
Description
(Slip size x Pipe size)
Original P/N
#/ Set

Full Circle Inserts for Cavins Type C & CHD spider( 2 1/16” body)

2 1/16” x 2 1/16”

TC-650-2 1/16” x 2 1/16”

4
4
4
4
2 1/16” x 1.900”(1 1/2”)

TC-651-2 1/16” x 1.990”

2 1/16” x 1.660”( 1 1/4”)

TC-651-2 1/16” x 1.660”

2 1/16” x 1.315”(1”)

TC-651-2 1/16” x 1.135”

Full Circle Inserts for Cavins Type C & CHD spider( 3 1/2” body)

3 1/2” x 3 1/2”

TC-650-3 1/2” x 3 1/2”, 65625-3

4
4
4
3 1/2” x 2 7/8”

TC-651-3 1/2” x 2 7/8”, 65625-2

3 1/2” x 2 3/8”

TC-651-3 1/2” x 2 3/8”, 65625-1

Full Circle Inserts for Cavins Type C & CHD spider( 4 1/2” body)

4 1/2” x 4 1/2”

TC-650-4 1/2” x 4 1/2”, 65653-3

4
4
4
4 1/2” x 4”

TC-651-4 1/2” x 4”, 65653-2

4 1/2” x 3 1/2”
TC-651-41/2” x 3 1/2”, 65653-1

Full Circle Inserts for Cavins Type E spider

Slip Insert 3 ½” x 2 3/8”

66651-1ST
4

Slip Insert 3 ½” x 2 7/8”

66651-2ST
4

Slip Insert 3 ½” x 3 1/2”

66651-3ST
4

Slip Insert 5 ½” x 4 1/2”

66653-2ST
4
