Wing Unions for Low Pressure Service 1000 – 2000psi

Feature-
Spherical surface of male sub and conical surface of female sub to form a metal-to-metal seal
Ball-and-cone seal remains leak-proof even when one surface is slightly pitted or misaligned

Figure 100
 Recommend for air, water, gas and oil service to 1000psi cwp manifold and line connection
 An economical low-pressure union
 Size from 2”-8”
 API standard thread and butt-weld end connection

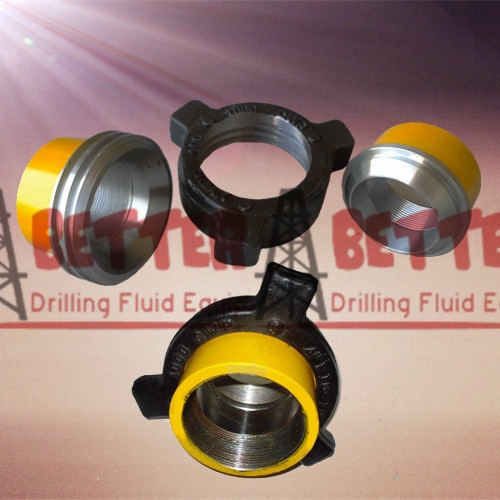

 Black Nut & Yellow Sub
Figure 200
 Recommend for air, water, and oil or gas service to 2000psi cwp general service manifold and line connection
 Size from 1”-10”
 API standard thread and butt-weld end connection available for 2” and above

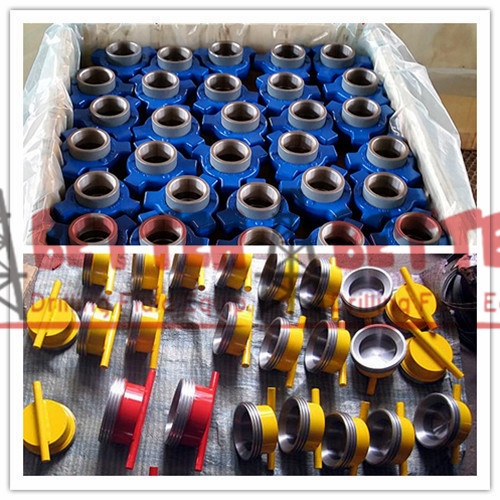

 Blue Nut & Grey Sub

For more details, please contact our sales.
