Products > Oilfield Sand/Slurry/Mud Pumps > Centrifugal Slurry Pump > SP(R) series Centrifugal Slurry Pump

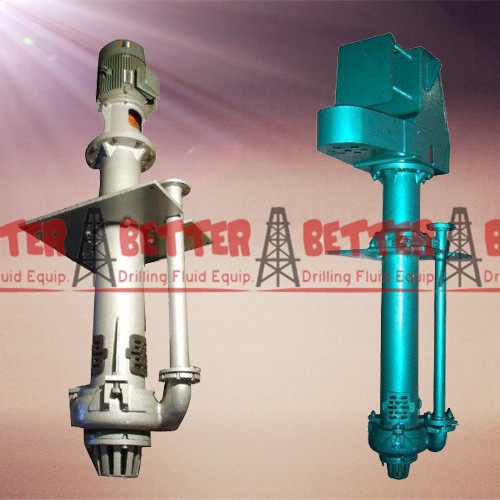

SP(R) series Centrifugal Slurry Pump SP(R) series Centrifugal Slurry Pump SP(R) series Centrifugal Slurry Pump SP(R) series Centrifugal Slurry Pump
Product name : SP(R) series Centrifugal Slurry Pump
Model No. : BT-ZJ SP(R)
Quality Standard : API & ISO
Origin : CN
Package : Plywood case / Steel Pallet
HS code : 8413709990
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

BT-ZJ SP(R) series Vertical Sump Pump
Warman SP(R) style Vertical Sump Pump for the submerged work


BETTER BT-ZJ SP(R) series slurry pumps are heavy duty, vertical, centrifugal and could work to be submerged in the sump and pool. These pumps don’t need any shaft seal and sealing water, which could work normally even if the suction volume is not enough.
The pumps are of single casing structure with the advantages of light weight, small volume, easy installation and maintenance.
Its casings are made of wear-resistant metal and the impellers are made of wear resistance metal or natural rubber, polyurethane and synthetic rubber. According to the different lever of liquid slurry in the pool, the different shaft length and suction pipe size could be selected. They are designed for pumping the slurry at abrasive, large particle and high concentration.

Feature

  • Vertical centrifugal slurry pump submerged in sump to work;
  • Driven by Ex-proof motor or diesel engine in BD/DC type
  • Discharge size 44-200mm
  • Capacity up to 247l/s and head up to 37m
  • Spare part and frame power ends are interchangeable with popular brand slurry pumps in the market

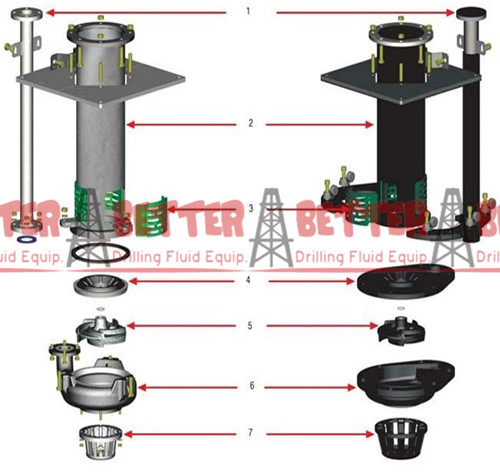

Construction Drawing


Main part no. in the drawing:
1 – Discharge Pipe
2 – Column
3 – Strainer
4 – Back Liner
5 – Impeller
6 – Pump Casing
7 – Lower Pipe

Standard Material Design
Description
Impeller
Casing
Column
Discharge
Seals
Standard
Chrome Alloy/Rubber
Chrome Alloy/Rubber
Mild Steel Rubber lined
Mild Steel Rubber lined
Nitrile Rubber

Model Fast Selection Table (clean water for reference)

Pump
Model

Max. Power

(kw)

Clear Water Performance


Capacity Q

Head
H (m)

Speed
n(r/min)

Max.Eff.
η%

Impeller
Dia.(mm)

m3/h
l/s
40PV SP-M
15
17-43.2
4.7-12
4-28.5
1000-2200
40
188
40PV SP-R
15
17-43.2
4.7-12
4-28.5
1000-2200
40
188
65QV SP-M
30
18-114
5-32
5-31.5
750-1500
60
280
65QV SP-R
30
18-114
5-32
5-31.5
750-1500
60
280
100RV SP-M
75
54-289
15-80
5-36
500-1200
62
370
100RV SP-R
75
54-289
15-80
5-36
500-1200
62
370
150SV SP-M
110
108-479
30-133
8.5-40
500-1000
52
450
200TV SP-M
110
189-891
52.5-247.5
6.5-37
400-850
64
520
250TV SP-M
200
360-1152
100-320
7-33
400-750
60
575
300TV SP-M
200
540-1548
150-430
5.5-26
350-700
60
580
