Product name : OTECO Style Mud Pressure Gauge
Model No. : BT-MPG Model 6/7/8
Quality Standard : #API & ISO
Origin : CN
Package : Plywood case / Steel Pallet
HS code : 9026209090
             [Next Product]→
Online Inquiry         Email Us

  Details:

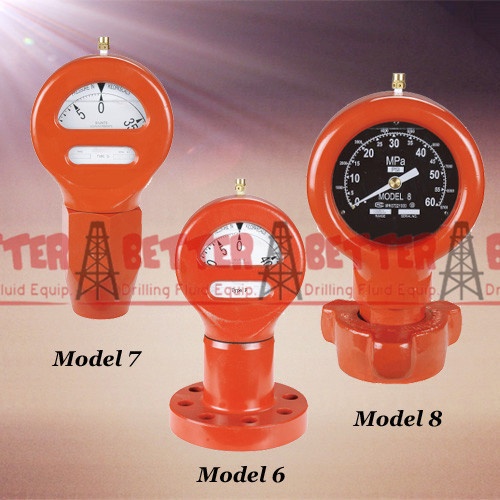

BT-MPG Model 6/7/8 Mud Pressure Gauge
Equivalent to OTECO Model 6/7/8 Mud Pressure Gauge, popular brands in the markets

BETTER provides those popular and good quality pressure for oilfield mud pump, standpipe and manifolds. They are equivalent to OTECO model 6, model 7 and model 8, 3 gauge models offering a multitude of sizes, pressure ranges and sub end connection, Dial range in PSI, BAR, KPA. Model 8 gauge offers dual unit of measure. They can work for trim of Salt water, Sour gas, Standard (mud, water, oil).

Specifications

Model 6:
Dimensions: 4-7/8 inch diameter dial case
Pressure range: 0-20,000 psi
Standard end connection: 2” NPT/LPT male and 1” LPT/NPT female.
Interchangeable with Oteco Model 6
Sub connection: 2” LPT female, RTJ Flanged, 2” FIG.1502 Male/Female for optional.
Model 7:
Dimensions: 7-5/8 “diameter dial case
Pressure range: 0-6,000 psi (1000 psi, 3000 psi, 5000 psi, 6000 psi)
Standard end connection: 2” NPT/LPT female
Interchangeable with Oteco Model 7
Sub connection: 2” Threaded LPT / NPT Female, RTJ Flanged, Union 2” FIG.1502 Male/Female for optional.
Model 8:
Dimensions: 8-1/8 “diameter dial case
Pressure range: 0-20000 psi (1000psi, 3000psi, 6000psi, 10000psi, 15000psi, 20000psi)
Standard end connection: 2” NPT/LPT male with a 1” LPT/NPT female.
Interchangeable with: Oteco Model 8
Sub connection: 2” LPT/NPT Female, RTJ Flanged, union FIG.1502 Male/Female for optional.

Benefits
• Accuracy: +/-1.6, +/-2.5
• Operation temperature range of -50 to +65 Celsius degree(-50F to +150F)
• Rugged, accurate and dependable for years of trouble free service.
• The gauge is filled with oil to prevent corrosion and to provide lubrication to all working parts. The combined effects of the oil and the gauge dampening mechanism eliminate fluctuations of the dial due to line vibration
• Available in Imperial or Metric.
