Products > Oilfield Sand/Slurry/Mud Pumps > Oilfield Mud Pump > Fluid End Assembly and Fluid End Cylinder

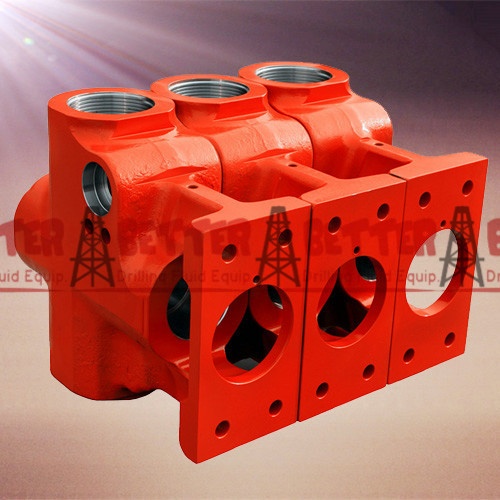

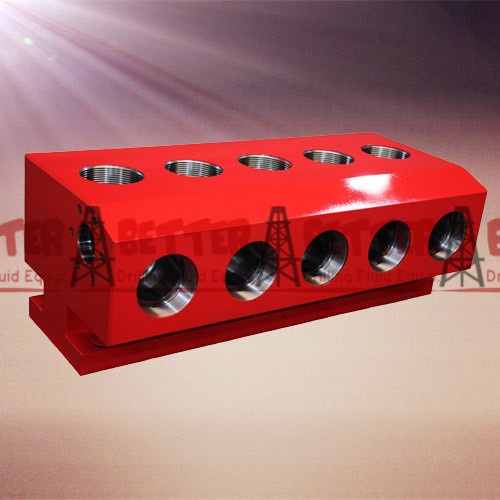

Fluid End Assembly and Fluid End Cylinder Fluid End Assembly and Fluid End Cylinder Fluid End Assembly and Fluid End Cylinder Fluid End Assembly and Fluid End Cylinder
Product name : Fluid End Assembly and Fluid End Cylinder
Model No. : HT400, TWS600, TWS900, TWS1000, TWS2250, QWS2500
Quality Standard : #API & ISO
Origin : CN
Package : Plywood case / Steel Pallet
HS code : 8413910000
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

BETTER offers plunger pump fluid end assembly, fluid end cylinder, plunger, ceramic plunger, valve and seat, packings, and some consumable parts in fracturing and cementing services.

Plunger: hard surface-coated or flame-sprayed, long service life. Plungers are used to pull fluid into the fluid end through the suction valve and push it out through the discharge valve. They do it by retracting from the fluid end to create volume in the fluid end chamber and then extending back into the fluid end chamber to displace volume and push the fluid out.

Valve & Seat: forged alloy construction, deep carburized surface, greater fluid flow and easy valve maintenance. Valves are used to direct the flow through the fluid end and separate the suction side of the pump from the discharge side. As the plunger is pulled back the pressure in the fluid end drops causing the discharge valve to pull harder onto the discharge valve seat and also causes the suction valve to lift off its seat.

Pressure Packing: The pressure packing creates a seal around the moving plunger to contain the fluid being pumped. The packing arrangement consists of several components that work together in order to achieve this.

The models we offer avaiable as below:
Serva: TPA-400, TPA-600, TPB-600
Halliburton HT400: Spacer Ring, Header Ring, Packing Ring, Female Adapter, Seal Carrier, Seal Carrier O-ring, Packing Lube Seal
SPM: TWS600, TWS900, TWS1000, TWS2250, QWS2500: Lantern Ring, Seal Ring, Pressure Ring, PKG adapter, Header Ring, O-ring, Back-up, O-ring, Back-up, Wiper Ring
